软管接头规格/尺寸 |
|||
| 型式 | 标准 | 接续部的种类 | 软管连接 |
|---|---|---|---|
| 公/母 | 管接头 | 材质 | SUS304 |
| 油封材質 | 氟素橡膠 | 使用流体 | 水 / 空氣 / 油 |
| 阀构造 | 单侧开关型 | 使用环境?用途 | 标准 |
| 内径 D(mm) | 10 | 适用软管No.内径 | 12 |
| 使用温度范围(℃) | -15～180 | 最高使用压力(MPa) | ～7.4 |
|

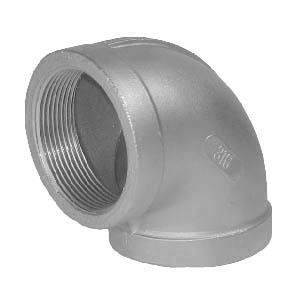

90度弯接头 |
||||||||||||||||||||||||||||
|
尺寸 |
1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 2-1/2"(NPT) | 2-1/2"(PS) | 3" | 4" | ||||||||||||||
|
|
mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in |
| A | 17 | 0.67 | 19 | 0.75 | 21.5 | 0.85 | 27 | 1.06 | 30 | 1.18 | 35 | 1.38 | 43 | 1.69 | 45 | 1.77 | 54 | 2.13 | 69 | 2.72 | 69 | 2.72 | 69 | 2.72 | 72 | 2.83 | 89 | 3.5 |
| B | 15.5 | 0.61 | 18.8 | 0.74 | 22.5 | 0.89 | 25.5 | 1 | 31.6 | 1.24 | 41.2 | 1.62 | 48.5 | 1.91 | 54.9 | 2.16 | 67.4 | 2.65 | 81.3 | 3.2 | 81.3 | 3.2 | 83.6 | 3.29 | 100.5 | 3.96 | 126.5 | 4.98 |
|
316L软管接头 |
||||||||||||||||
| 尺寸 | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | |
| A | 22 | 0.87 | 28 | 1.1 | 35 | 1.38 | 43 | 1.69 | 52 | 2.05 | 57 | 2.24 | 68 | 2.68 | 78 | 3.07 |
| B | 24 | 0.94 | 30 | 1.18 | 36 | 1.42 | 46 | 1.81 | 55 | 2.17 | 60 | 2.36 | 70 | 2.76 | 84 | 3.31 |
| L | 29 | 1.14 | 34 | 1.34 | 34 | 1.34 | 38 | 1.5 | 44 | 1.73 | 50 | 1.97 | 53 | 2.09 | 54 | 2.13 |
|
金属软管接头 |
||||||||||||||||
| 尺寸 | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | |
| A | 18 | 0.71 | 22 | 0.87 | 28 | 1.1 | 35 | 1.38 | 43 | 1.69 | 52 | 2.05 | 57 | 2.24 | 68 | 2.68 |
| B | 21 | 0.83 | 24 | 0.94 | 30 | 1.18 | 36 | 1.42 | 46 | 1.81 | 55 | 2.17 | 60 | 2.36 | 70 | 2.76 |
| L | 41 | 1.61 | 45 | 1.77 | 54 | 2.13 | 57 | 2.24 | 66 | 2.6 | 70 | 2.76 | 73 | 2.87 | 83 | 3.27 |
